Multiple Identity Providers

In the previous chapter, we replaced our local user database with an external LDAP server. But what if we want to have both?

Configuration

Kubauth provides another built-in module: the merger.

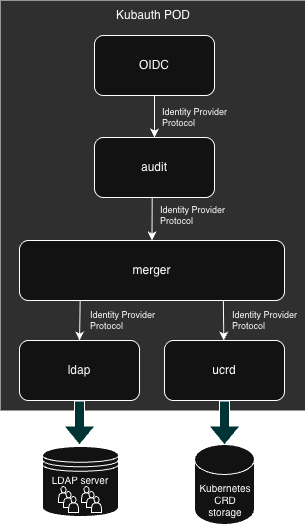

Here is our target architecture:

Here is a values file to implement it:

values-merger.yaml

oidc:
  issuer: https://kubauth.mycluster.mycompany.com
  postLogoutURL: https://kubauth.mycluster.mycompany.com/index
  allowPasswordGrant: true

  ingress:
    host: kubauth.mycluster.mycompany.com

  server:
    certificateIssuer: cluster-odp

audit:
  idProvider:
    baseURL: http://localhost:6804 # Merger listening port

merger:
  enabled: true
  idProviders:
    - name: ldap
      httpConfig:
        baseURL: http://localhost:6803 # ldap provider listening port
    - name: ucrd
      httpConfig:
        baseURL: http://localhost:6802 # ucrd provider listening port

ucrd:
  enabled: true

ldap:
  enabled: true
  ldap:
    host: openldap.openldap.svc
    insecureNoSSL: true
    bindDN: cn=admin,dc=mycompany,dc=com
    bindPW: admin123
    timeoutSec: 10
    groupSearch:
      baseDN: ou=Groups,dc=mycompany,dc=com
      filter: (objectClass=posixgroup)
      linkGroupAttr: memberUid
      linkUserAttr: uid
      nameAttr: cn
    userSearch:
      baseDN: ou=Users,dc=mycompany,dc=com
      cnAttr: cn
      emailAttr: mail
      filter: (objectClass=inetOrgPerson)
      loginAttr: uid
      numericalIdAttr: uidNumber

• The audit module is now connected to the merger module.
• The merger module is configured with a list of two identity providers. We will see in the next chapter that order is important.
• The ucrd module is enabled.
• The ldap module configuration is the same as in the previous chapter.

Once your configuration is ready, proceed with deployment by running the helm upgrade ... command:

helm -n kubauth upgrade -i kubauth --values ./values-merger.yaml oci://quay.io/kubauth/charts/kubauth --version 0.2.1 --create-namespace --wait

Verify which containers have been deployed:

kubectl -n kubauth get pod -l app.kubernetes.io/instance=kubauth -o jsonpath='{range .items[0].spec.containers[*]}{.name}{"\n"}{end}'

oidc
audit
merger
ucrd
ldap

If you have followed this manual, the ucrd module was previously removed, so all its content is gone. You must restore it:

kubectl apply -f users.yaml
kubectl apply -f group1.yaml
kubectl apply -f group2.yaml

Logins

Test authentication:

kc token --issuerURL https://kubauth.mycluster.mycompany.com --clientId public -d

Run this command twice: once with bob/bob123 and again with john/john123.

Verify that both users' claims are properly populated.

Audit

If you review the login attempts:

kc audit logins

WHEN           LOGIN   STATUS            UID   NAME         GROUPS       CLAIMS                                      EMAILS                  AUTH
Thu 12:14:32   bob     passwordChecked   -     Bob MORANE   [staff]      {}                                          [bob@mycompany.com]     ldap
Thu 12:14:18   john    passwordChecked   -     John DOE     [devs,ops]   {"accessProfile":"p24x7","office":"208G"}   [johnd@mycompany.com]   ucrd

Notice the rightmost column AUTH (AUTHORITY), which now indicates the identity provider that validated the password.
